L-53LYD is a yellow light emitting diode with low power consumption and popular T-13/4 diameter package. It can be used as general purpose LED and is RoHS compliant.

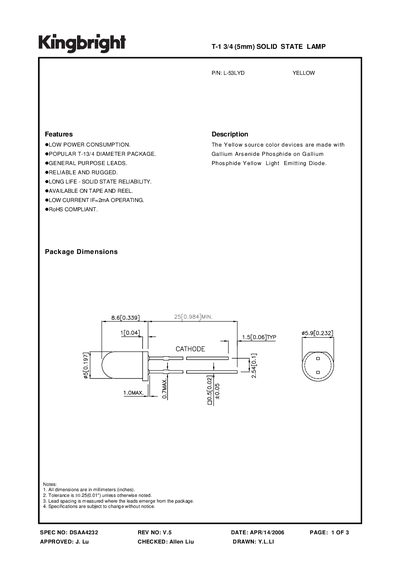

The Kingbright L-53LYD is a yellow solid‑state lamp in a T‑1 3/4 (5 mm) package. It offers low power consumption, reliable rugged construction, and is RoHS compliant, available on tape and reel.
The device emits at a peak wavelength of 590 nm with a forward voltage of about 2.5 V at 20 mA and a typical low‑power forward current of 2 mA. It is rated for up to 30 mA continuous forward current, 140 mA peak, and operates from –40 °C to +85 °C.
| Peak Wavelength | 590 nm |
|---|---|
| Forward Voltage (20 mA) | 2.5 V |
| Capacitance | 20 pF |
| Power Dissipation | 105 mW |
| Maximum Continuous Forward Current | 30 mA |
| Peak Forward Current | 140 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Reverse Voltage | 5 V |
The forward voltage is about 2.5 V at a forward current of 20 mA.
The peak wavelength is 590 nm.
A low‑power forward current of 2 mA is recommended.
It operates from –40 °C up to +85 °C.
