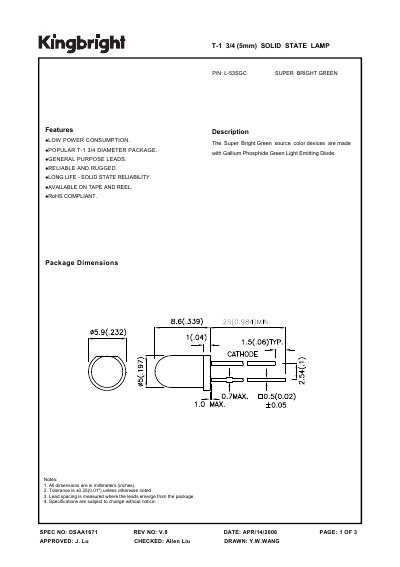

This document is the specification of L-53SGC SUPER BRIGHT GREEN, which is made by Gallium Phosphide Green Light Emitting Diode.
This datasheet describes the L-53SGC Super Bright Green LED, a T‑1 3/4 (5 mm) solid‑state lamp made from Gallium Phosphide. It lists package dimensions, electrical and optical characteristics, and absolute maximum ratings.
Key features include low power consumption, a popular 3/4" diameter package, reliable long‑life operation, and RoHS compliance. The document also provides recommended soldering temperatures and handling notes.
| Package type | T‑1 3/4 (5 mm) solid‑state lamp |
|---|---|
| Forward Voltage (20 mA) | 2.2‑2.5 V |
| Reverse Voltage | 5 V |
| Peak Forward Current | 140 mA |
| Power Dissipation | 105 mW |
| Peak Wavelength | 565 nm |
| Spectral Half‑width | 30 nm |
| Capacitance | 15 pF |
| Operating Temperature Range | -40 °C to +85 °C |
| Lead Solder Temperature | 260 °C for 3 seconds (or 5 seconds) |
The forward voltage is between 2.2 V and 2.5 V at a test current of 20 mA.
The peak wavelength is 565 nm.
The device is rated for a reverse voltage of 5 V.
A lead solder temperature of 260 °C for 3 seconds (or 5 seconds) is recommended.
