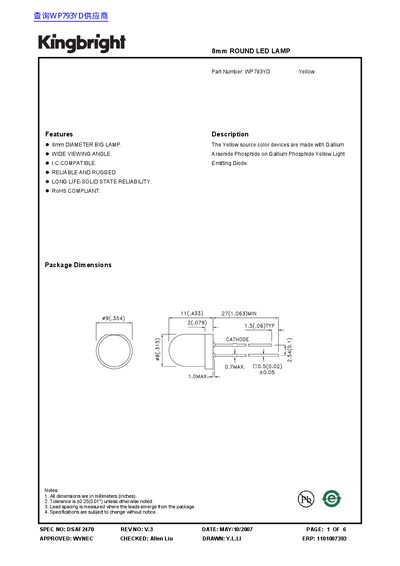

Kingbright WP793YD 8mm Round LED Lamp Datasheet

WP793YD LED lamp is a yellow light source LED lamp with a diameter of 8mm, wide viewing angle, IC compatible, reliable and rugged, long life and solid state reliability.

Brand: Kingbright
Category: LED Driver Controller
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 246 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: FD825039038C8F833C3E23345F9203A4
PDF: Kingbright WP793YD 8mm Round LED Lamp Datasheet PDF

About this manual

This document is a datasheet for the Kingbright WP793YD, an 8mm diameter round LED lamp with a yellow source color. The device utilizes Gallium Arsenide Phosphide on Gallium Phosphide technology and features a wide viewing angle of 30 degrees.

What's inside

Features Description
Package Dimensions
Selection Guide
Electrical / Optical Characteristics
Absolute Maximum Ratings
Packing & Label Specifications
LED Mounting Method
Lead Forming Procedures

Specifications

Diameter	8mm
Color	Yellow
Peak Wavelength	590 nm
Forward Voltage	2.1 V Typ.
Reverse Voltage	5 V
DC Forward Current	30 mA
Operating Temperature	-40°C To +85°C

Frequently asked questions

What is the part number for the 8mm yellow LED?

The part number is WP793YD.

Is the WP793YD RoHS compliant?

Yes, the device is RoHS compliant.

What is the maximum power dissipation?

The maximum power dissipation is 75 mW.
