L-53YD-12V YELLOW is a Yellow Light Emitting Diode (LED), which has features of low power consumption, wide application and long life.
The Philips L-53YD-12V is a yellow light‑emitting diode packaged in a T‑1 3/4 (5 mm) solid‑state lamp format. It includes an internal 12 V resistor and meets RoHS requirements, making it suitable for low‑power, general‑purpose applications.

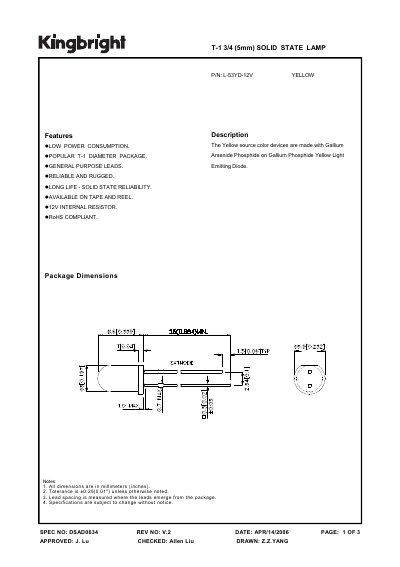

Key electrical and optical parameters are provided, including forward voltage, current range, power dissipation, wavelength specifications, and operating temperature limits. The datasheet also lists mechanical dimensions and lead spacing for PCB mounting.
| Package type | T-1 3/4 (5mm) solid‑state lamp |
|---|---|
| Internal resistor | 12 V |
| Forward voltage | 14 V |
| Reverse voltage | 5 V |
| Forward current | 8.5‑11.5 mA |
| Power dissipation | 120 mW |
| Peak wavelength | 590 nm |
| Dominant wavelength | 588 nm |
| Spectral half‑width | 35 nm |
| RoHS compliance | Yes |
The forward voltage is 14 V.
The peak wavelength is 590 nm.
Yes, it is RoHS compliant.
