This document is the specification of WP7677C2PBC/Z product, which introduces the features and characteristics of the product, including high luminance output, high current design, uniform color, low power consumption, low thermal resistance, low profile, tube package for automatic insertion equipment, wave soldering, RoHS compliance, etc.

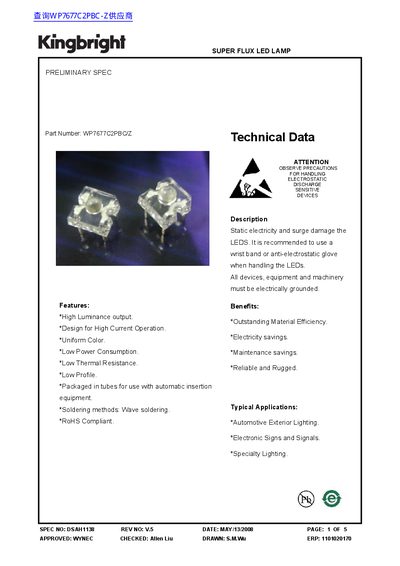

This document is a preliminary specification datasheet for the Kingbright WP7677C2PBC/Z Super Flux LED Lamp. The device features high luminous output, outstanding material efficiency, and is designed for high current operation with low power consumption.
The datasheet provides absolute maximum ratings, including a DC forward current of 50 mA and an operating temperature range of -40 to +85 °C. It also includes selection guides for optical characteristics at 25°C, electrical parameters such as forward voltage and reverse current, and packing specifications.
| Part Number | WP7677C2PBC/Z |
|---|---|
| LED Color | Blue (InGaN) |
| DC Forward Current | 50 mA |
| Power Dissipation | 210 mW |
| Reverse Voltage | 5 V |
| Operating Temperature | -40 To +85 °C |
| Peak Dominant Wavelength | 465 nm |
Yes, the document states it is ROHS Compliant.
You should use a wrist band or anti-electrostatic glove, and ensure all devices and machinery are electrically grounded.
The maximum DC forward current is 50 mA.
The operating temperature range is from -40 to +85 °C.
