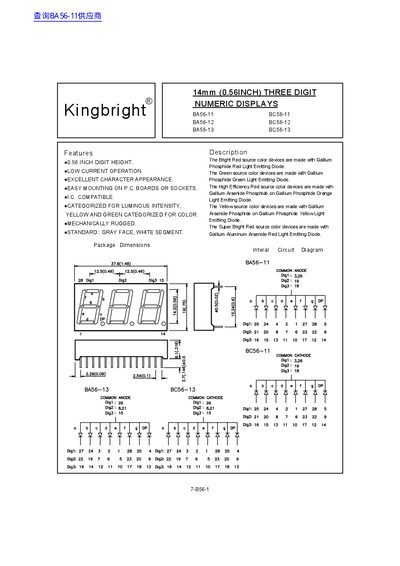

This PDF file details the features and characteristics of Kingbright ® 14mm (0.56INCH) THREE DIGIT NUMERIC DISPLAYS BA56-11 BC56-11 BA56-12 BC56-12 BA56-13 BC56-13.
The Kingbright three‑digit numeric displays are 14 mm (0.56 in) high LED modules available in various color options (red, green, yellow, super‑bright red). They are designed for easy mounting on printed‑circuit boards or sockets and are suitable for applications requiring clear numeric readouts.
The document provides package dimensions, a selection guide, internal circuit diagrams, and detailed electrical/optical characteristics such as forward voltage, reverse voltage, power dissipation, and luminous intensity curves for each color variant.
| Digit Height | 0.56 INCH |
|---|---|
| Forward Voltage (Green) | 2.2 V @ IF=20mA |
| DC Forward Current | 25 mA (Bright Red) / 30 mA (High Efficiency Red) |
| Peak Forward Current | 150 mA |
| Operating Temperature Range | -40 °C to +85 °C |
All dimensions are given in millimeters with a tolerance of +0.25 mm unless otherwise noted.
The reverse current is limited to 10 µA at a reverse voltage of 5 V.
The forward voltage for the green device is 2.2 V at a test current of 20 mA.
Lead soldering temperature is 260 °C for up to 5 seconds.
