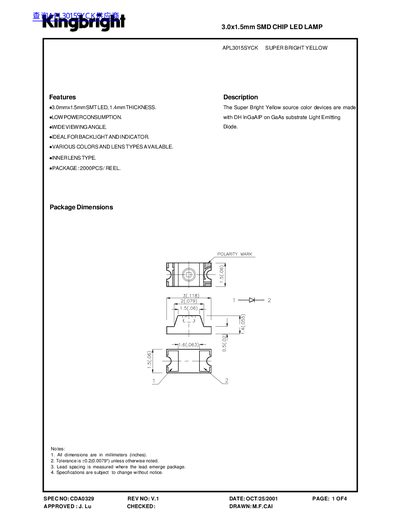

This is the datasheet of APL3015SYCK super bright yellow LED
The APL3015SYCK LED features a 3.0 mm × 1.5 mm SMT package with a 1.4 mm thickness and a wide viewing angle. It uses a DH InGaAlP material on a GaAs substrate, delivering a peak wavelength of 590 nm and a super‑bright yellow color. The device is suited for backlight and indicator applications and is supplied in reels of 2000 pieces.
The datasheet provides electrical characteristics such as a forward voltage of 2.0 V at 20 mA, a reverse current of 10 µA at 5 V, and a power dissipation of 125 mW. Absolute maximum ratings include a DC forward current of 30 mA and a peak forward current of 175 mA. Recommended SMT reflow soldering limits the peak temperature to 230 °C with a typical reflow range of 140‑160 °C.
| Package size | 3.0 mm × 1.5 mm |
|---|---|
| Power dissipation | 125 mW |
| DC forward current | 30 mA |
| Reverse voltage | 5 V |
| Operating temperature range | -40 °C to +85 °C |
| Recommended reflow temperature range | 140 °C – 160 °C |
The reflow peak temperature should not exceed 230 °C, with a typical reflow range of 140 °C to 160 °C.
The device can dissipate up to 125 mW.
