WP7104SRD5V Super Bright Red is a red LED product with low power consumption, ruggedness, and high solid state reliability.

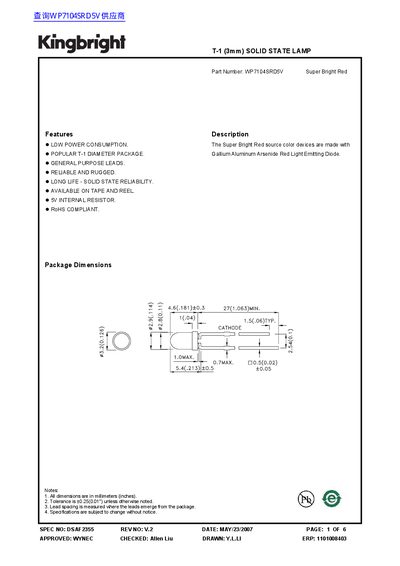

The document provides technical data for the Kingbright WP7104SRD5V, a 5V internal resistor Super Bright Red LED in a popular T-1 diameter package. Key features include low power consumption, long life solid-state reliability, and RoHS compliance. The device utilizes Gallium Aluminum Arsenide (GaAlAs) technology with a peak wavelength of 660 nm.
| Part Number | WP7104SRD5V |
|---|---|
| Chip Material | GaAlAs |
| Peak Wavelength | 660 nm |
| Forward Current (Typ) | 13 mA |
| Reverse Voltage Max | 5 V |
| Operating Temperature Range | -40°C To +70°C |
| Power Dissipation Max | 85 mW |
Yes, the device is listed as RoHS Compliant.
Lead forming must be performed before soldering and a minimum of 2mm clearance should be maintained between the base of the LED lens and the first lead bend.
