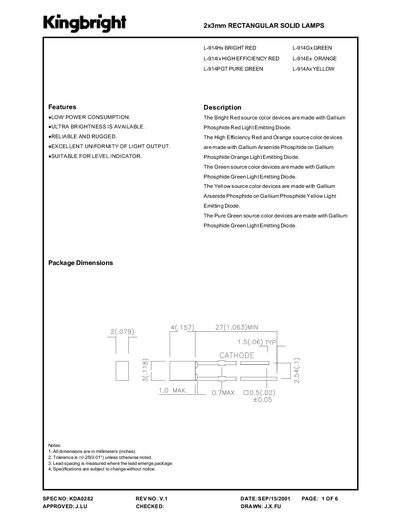

Kingbright L-914HxBRIGHT Red LED Datasheet

About this manual

This document is a technical datasheet for the Kingbright L-914 series of 2x3mm rectangular solid lamps. It specifically covers the L-914HxBRIGHT RED model, which utilizes a Gallium Phosphide Red Light Emitting Diode.

The text provides comprehensive specifications including electrical parameters such as forward voltage and reverse current, optical characteristics like peak wavelength and luminous intensity, and absolute maximum ratings for power dissipation and operating temperature. Graphical data illustrates the relationship between forward current, voltage, and ambient temperature.

What's inside

• Features
• Package Dimensions
• Selection Guide
• Electrical / Optical Characteristics
• Absolute Maximum Ratings
• Forward Current vs Forward Voltage

Specifications

Frequently asked questions

What material is used for the Bright Red source color devices?

They are made with Gallium Phosphide Red Light Emitting Diode.

What is the viewing angle for the L-914HxBRIGHT RED?

The viewing angle is 100°.
