WP7104LYD Yellow lamp is a low power consumption, reliable, rugged, long life solid state lamp. It is made with GaAsP/GaP Yellow Light Emitting Diode with features such as popular T-1 diameter package, general purpose leads, low current IF=2mA operating and RoHS compliant.

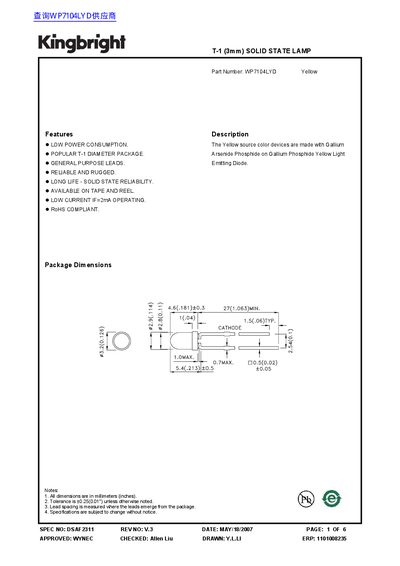

This document is a technical datasheet for the Kingbright WP7104LYD, a general-purpose T-1 (3mm) diameter yellow LED. The device utilizes Gallium Arsenide Phosphide on Gallium Phosphide technology to emit yellow light with low power consumption and high reliability.
| Color | Yellow (GaAsP/GaP) |
|---|---|
| Operating Current | 2mA |
| Peak Wavelength | 590 nm |
| Dominant Wavelength | 588 nm |
| Forward Voltage (Typical) | 1.85 V |
| Reverse Current (Max) | 10 uA |
| Power Dissipation | 75 mW |
| DC Forward Current (Max) | 30 mA |
| Operating Temperature Range | -40°C To +85°C |
The device is designed for low power consumption with an operating current of 2mA.
Yes, the datasheet explicitly states that the device is RoHS compliant.
