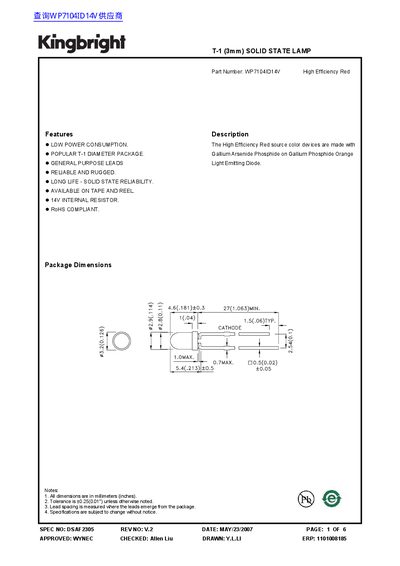

KINGBRIGHT T-1 (3mm) SOLID STATE LAMP handbook

WP7104ID14V is a high efficiency red solid state lamp produced by WYNEC company, with low power consumption, reliable and rugged, long life and other characteristics

Brand: Kingbright
Category: LED Driver Controller
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 394 KB
Published: 11 June, 2012
Updated: 30 September, 2023
Model: T-1 3
MD5 checksum: 17090124E4430B2C8F494B5DD4A1E5A8
PDF: KINGBRIGHT T-1 (3mm) SOLID STATE LAMP handbook PDF

About this manual

This document is a technical datasheet for the Kingbright WP7104ID14V High Efficiency Red Light Emitting Diode (LED). The device features a T-1 diameter package with an internal 14V resistor and utilizes Gallium Arsenide Phosphide on Gallium Phosphide technology. It is designed for general-purpose applications requiring low power consumption and solid-state reliability.

What's inside

Features Description
Package Dimensions
Selection Guide
Electrical / Optical Characteristics
Absolute Maximum Ratings
Packing & Label Specifications
LED Mounting Method
Lead Forming Procedures

Specifications

Peak Wavelength	627 nm
Dominant Wavelength	625 nm
Forward Current	10.5 mA Typ.
Reverse Voltage	5 Vv
Operating Temperature	-40°C To +70°C
Power Dissipation	160 mW

Frequently asked questions

What is the viewing angle of this LED?

The viewing angle for the WP7104ID14V is 40°.

Is this product RoHS compliant?

Yes, the device is RoHS compliant.
