L-2060GD GREEN is a green LED lamp made of GaP with ultra brightness, reliable, rugged, multiple mounting methods, and RoHS compliant.
The L-2060GD is a 1.8 mm diameter green solid‑state lamp (LED) from Kingbright. It offers ultra‑bright phosphide green light, RoHS compliance, and versatile mounting on PC‑board or panel, available with a diffused lens.

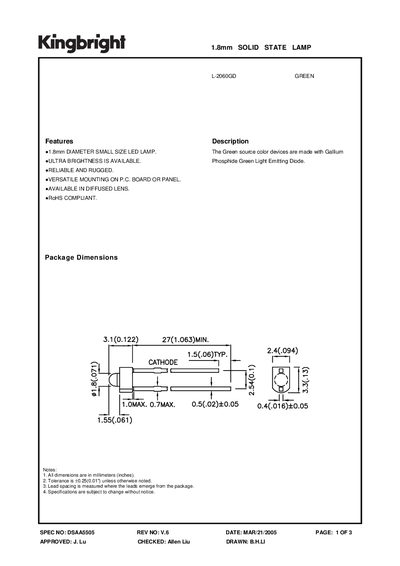

The sheet provides detailed package dimensions, electrical and optical characteristics such as forward voltage, reverse current, peak wavelength, and power dissipation, as well as absolute maximum ratings and derating curves for temperature.
| Peak Wavelength | 565 nm |
|---|---|
| Dominant Wavelength | 568 nm |
| Spectral Line Half‑width | 30 nm |
| Capacitance | 15 pF |
| Forward Voltage (20 mA) | 2.2‑2.5 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| DC Forward Current | 25 mA |
| Peak Forward Current | 140 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
The forward voltage is between 2.2 V and 2.5 V at 20 mA.
The device can tolerate up to 5 V reverse voltage.
It operates from –40 °C up to +85 °C.
The typical reverse current is 10 µA at 5 V.
