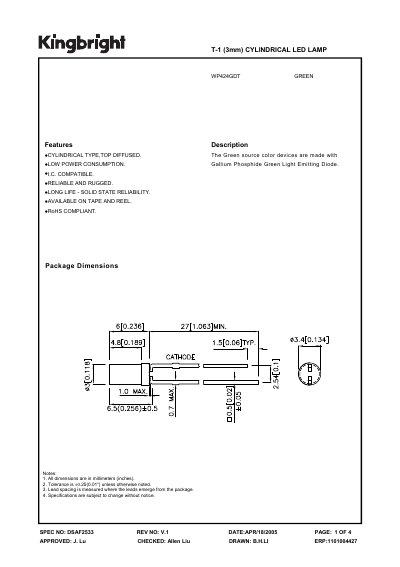

This is a product specification sheet, which mainly introduces the features and characteristics of WP424GDT GREEN(GaP) GREEN DIFFUSED product, including package dimensions, light source color, luminous power, luminous angle, etc.
The WP424GDT is a 3 mm cylindrical green LED lamp made from Gallium Phosphide. It features a diffused top, low power consumption, RoHS compliance, and is available on tape and reel.
The document provides detailed electrical and optical characteristics such as peak wavelength, forward voltage, and power dissipation, as well as packaging and sorting tolerances for the device.
| Peak Wavelength | 565 nm |
|---|---|
| Dominant Wavelength | 568 nm |
| Forward Voltage (20 mA) | 2.2‑2.5 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| Operating Temperature | -40 °C to +85 °C |
The peak wavelength is 565 nm.
The forward voltage is between 2.2 V and 2.5 V at 20 mA.
It can operate from –40 °C to +85 °C.
It is available on tape and reel, with sorting tolerances of ±1 nm wavelength, ±15 % intensity, and ±0.1 V forward voltage.
