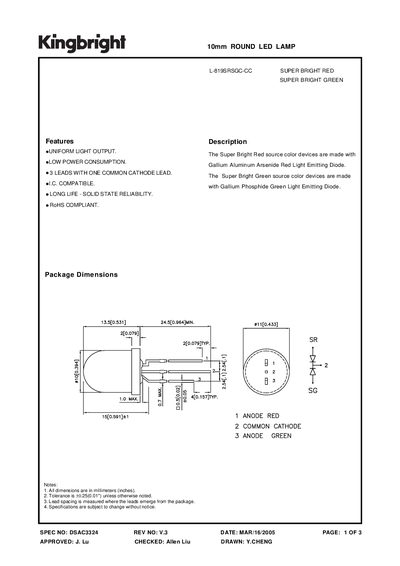

The document describes the dimensions, features, characteristics, and selection guide of the L-819SRSGC-CC 10mm round LED lamp.
The Kingbright L-819SRSGC-CC is a 10 mm round LED lamp available in super‑bright red (GaAlAs) and green (GaP) versions. It offers uniform light output, low power consumption, three leads with a common cathode, long life, solid‑state reliability, and RoHS compliance.
The document provides detailed package dimensions, selection guide data, electrical and optical characteristics at 25 °C, absolute maximum ratings, and spatial distribution curves. It also notes sorting tolerances for wavelength, luminous intensity, and forward voltage.
| Peak Wavelength (Green) | 565 nm |
|---|---|
| Forward Voltage (Green) | 2.2 V |
| Operating Temperature Range | -40 °C to +85 °C |
The green LED has a peak wavelength of 565 nm.
The package measures approximately 13.5 mm × 24.5 mm × 2 mm (typical).
Yes, the LED lamp is RoHS compliant.
