This document is a datasheet for L-7104PBC blue LED lamp. The lamp features low power consumption, long life, and ruggedness.
The L-7104PBC BLUE is a 3 mm solid‑state lamp (LED) in the T‑1 package, offering low power consumption, long life and reliable performance for general‑purpose applications. It is available on tape and reel and complies with RoHS requirements.

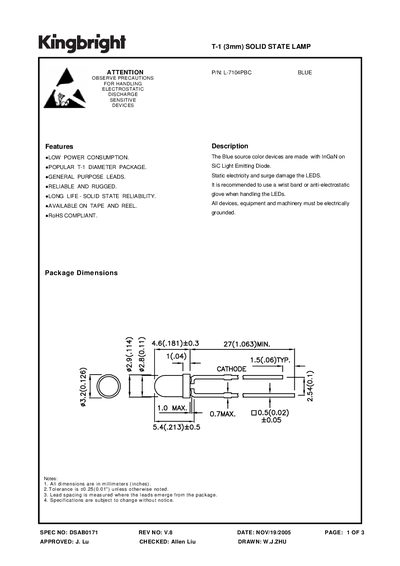

The device is electrostatic‑discharge sensitive; handling should be done with a wrist band or anti‑static glove. Mechanical dimensions, lead spacing and package details are provided, along with electrical and optical characteristics measured at 25 °C.
| Peak Wavelength | 468 nm |
|---|---|
| Forward Voltage (typical, 20 mA) | 3.65 V |
| Reverse Current (5 V) | 10 µA |
| Capacitance | 65 pF |
| Power Dissipation | 102 mW |
| DC Forward Current | 30 mA |
| Operating Temperature | -40 °C to +85 °C |
| RoHS Compliance | Yes |
The typical forward voltage is 3.65 V at 20 mA.
The device can tolerate up to 5 V reverse voltage.
Yes, the part is RoHS compliant.
Use a wrist band or anti‑electrostatic glove when handling the LEDs.
