KINGBRIGHT - L-53ID-5V HIGH EFFICIENCY RED T-1 3/4 (5mm) SOLID STATE LAMP Manual

This document is about the specifications of L-53ID-5V High Efficiency Red Light Emitting Diode.

Brand: Kingbright
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 68 KB
Published: 07 May, 2012
Updated: 30 September, 2023
Models: T-1 3, 4 (5mm)
MD5 checksum: D18A716BC5A8238536D2147450939759
PDF: KINGBRIGHT - L-53ID-5V HIGH EFFICIENCY RED T-1 3/4 (5mm) SOLID STATE LAMP Manual PDF

About this manual

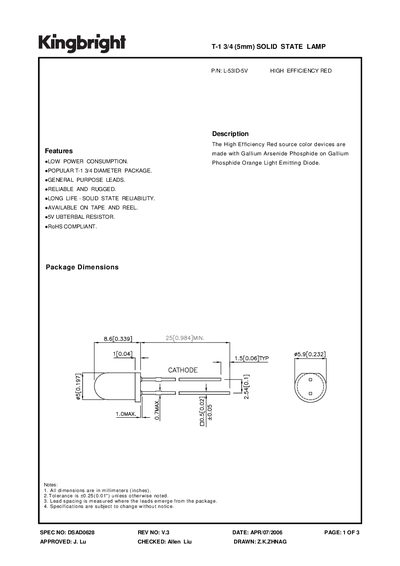

The Kingbright L-531D-5V is a high‑efficiency red LED built with Gallium Arsenide Phosphide on Gallium Phosphide. It offers low power consumption, long life, and RoHS compliance, and is supplied in tape and reel formats.

The datasheet provides detailed electrical and optical parameters, package dimensions, and absolute maximum ratings, along with graphs of forward voltage and luminous intensity versus temperature and wavelength.

What's inside

Description
Package Dimensions
Selection Guide
Electrical / Optical Characteristics
Absolute Maximum Ratings
Graphs

Specifications

Peak Wavelength	627 nm
Forward Voltage	6 V
Forward Current	13‑17.5 mA
Power Dissipation	85 mW
Reverse Voltage	5 V

Frequently asked questions

What is the forward voltage of the L-531D-5V LED?

The forward voltage is specified as 6 V.

What is the operating temperature range for this LED?

It operates from –40 °C to +70 °C.

What is the typical forward current for the L-531D-5V?

Typical forward current is 13 mA with a maximum of 17.5 mA.

Is the L-531D-5V RoHS compliant?

Yes, the device is RoHS compliant.
