This datasheet provides specifications for a super bright red LED lamp. It includes information such as the lamp's dimensions, power, current, and working temperature.

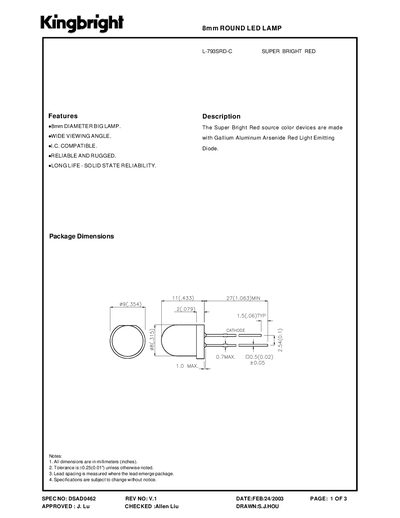

The L-793SRD-C is an 8 mm round LED lamp that delivers a super‑bright red light using a GaAlAs diode. It offers a wide viewing angle, solid‑state reliability, and long life. The package dimensions are 1.063 mm × 0.79 mm × 0.5 mm (typical).
The datasheet provides electrical and optical characteristics such as a peak wavelength of 660 nm, forward voltage of 1.85 V at 20 mA, and a reverse current of 10 µA at 5 V. Absolute maximum ratings include a power dissipation of 100 mW, DC forward current of 30 mA, and an operating temperature range of –40 °C to +85 °C.
| Peak Wavelength | 660 nm |
|---|---|
| Forward Voltage (20 mA) | 1.85 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 100 mW |
| DC Forward Current | 30 mA |
| Operating Temperature | -40 °C to +85 °C |
| Capacitance | 45 pF |
The forward voltage is 1.85 V at a test current of 20 mA.
The device can tolerate a reverse voltage of up to 5 V.
It operates from –40 °C to +85 °C.
The peak wavelength is 660 nm.
