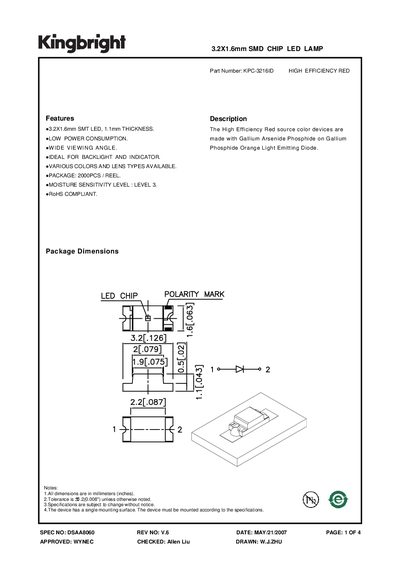

This document is the datasheet of KPC-3216ID LED product, which introduces the features, specifications, models and other information of the product.
The KPC-3216ID is a high‑efficiency red SMD LED from Kingbright, measuring 3.2 × 1.6 mm with a 1.1 mm thickness. It offers low power consumption, wide viewing angle, and is suitable for backlight and indicator applications.
The datasheet provides detailed electrical and optical characteristics, absolute maximum ratings, relative radiant intensity curves, and recommended reflow soldering profiles for lead‑free SMT processes.
| Package size | 3.2 × 1.6 mm, 1.1 mm thickness |
|---|---|
| Peak wavelength | 627 nm |
| Dominant wavelength | 625 nm |
| Spectral line half‑width | 45 nm |
| Capacitance | 15 pF |
| Reverse current (5 V) | 10 µA |
| Power dissipation | 75 mW |
| DC forward current | 30 mA |
| Reverse voltage | 5 V |
| Operating temperature range | -40 °C to +85 °C |
The recommended reflow temperature is 245 °C ± 5 °C, with a maximum soldering temperature of 260 °C.
The peak wavelength is 627 nm.
The device can dissipate up to 75 mW.
