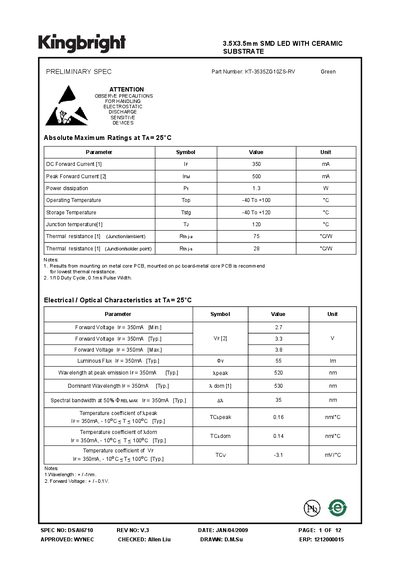

The data sheet provides technical parameters for 3.5X3.5mm SMD LED WITH CERAMIC SUBSTRATE, including current, voltage, power, temperature, spectrum, etc.
This datasheet details the electrical and optical characteristics of the Kingbright KT-3535ZG10ZS-RV green SMD LED, including forward voltage, luminous flux, peak current and thermal parameters. It also lists the package dimensions, material composition and key features such as high brightness, ESD protection and RoHS compliance.
Additional sections cover reliability testing, handling precautions, recommended board placement, reflow soldering profile, moisture‑sensitivity level, and packaging specifications for tape and reel formats. The document is intended for designers and manufacturers integrating this LED into electronic assemblies.
| Forward Voltage (typ) at 350 mA | 3.3 V |
|---|---|
| Luminous Flux (typ) at 350 mA | 55 Im |
| Peak Forward Current | 500 mA |
| Power Dissipation | 1.3 W |
| Operating Temperature Range | -40 °C to +100 °C |
| Maximum Junction Temperature | 120 °C |
| Thermal Resistance (junction/ambient) | 75 °C/W |
| Dominant Wavelength | 530 nm |
The peak forward current is 500 mA.
The recommended reflow temperature is 245 °C ± 5 °C, with a maximum of 260 °C.
Store the LED between –40 °C and +120 °C.
