This document is the data sheet for DSAB9600, which details the dimensions, features, and performance of DSAB9600.

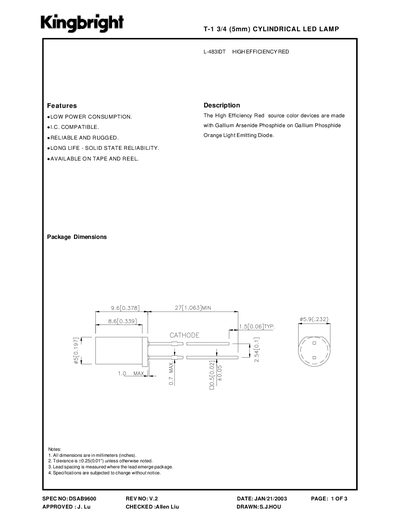

The L-483IDT is a high‑efficiency red LED lamp in a T‑1 3/4 (5 mm) cylindrical package. It offers low power consumption, long solid‑state life, and is available on tape and reel.
The datasheet lists detailed electrical and optical characteristics such as forward voltage, peak wavelength, and power dissipation, as well as mechanical dimensions and operating temperature limits.
| Peak Wavelength | 627 nm |
|---|---|
| Spectral Line Half‑width | 45 nm |
| Capacitance | 15 pF |
| Forward Voltage (20 mA) | 2.0 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| DC Forward Current | 30 mA |
| Peak Forward Current | 160 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Lead Solder Temperature | 260 °C for 5 s |
The forward voltage is 2.0 V at a test current of 20 mA.
The device can tolerate up to 5 V reverse voltage.
It operates from –40 °C to +85 °C.
