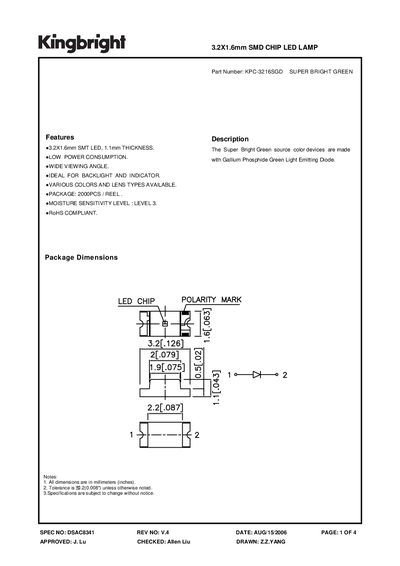

This datasheet provides the specification information of KPC-3216SGD Super Bright Green SMD Chip LED Lamp. The product is made of Gallium Phosphide Green Light Emitting Diode, with low power consumption, wide viewing angle, suitable for backlight and indicator.
The KPC-3216SGD is a 3.2 mm × 1.6 mm surface‑mount LED lamp that emits a vivid green light (565 nm peak wavelength). It features low power consumption, a wide viewing angle, and is RoHS compliant, making it suitable for backlighting and indicator applications.
The datasheet provides electrical and optical characteristics such as a forward voltage of 2.2 V at 20 mA, reverse current of 10 µA, and a maximum power dissipation of 105 mW. It also includes a recommended reflow soldering profile (245 °C ± 5 °C, max 260 °C) and package details (2000 pcs per reel).
| Package | 2000 pcs / reel |
|---|---|
| Peak Wavelength | 565 nm |
| Forward Voltage (20 mA) | 2.2 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| Operating Temperature | -40 °C to +85 °C |
| DC Forward Current | 25 mA |
| Capacitance | 15 pF |
| Moisture Sensitivity Level | Level 3 |
The recommended reflow temperature is 245 °C ± 5 °C, and the maximum soldering temperature should be limited to 260 °C.
The forward voltage at 20 mA is 2.2 V.
The peak wavelength is 565 nm.
It has Moisture Sensitivity Level 3.
