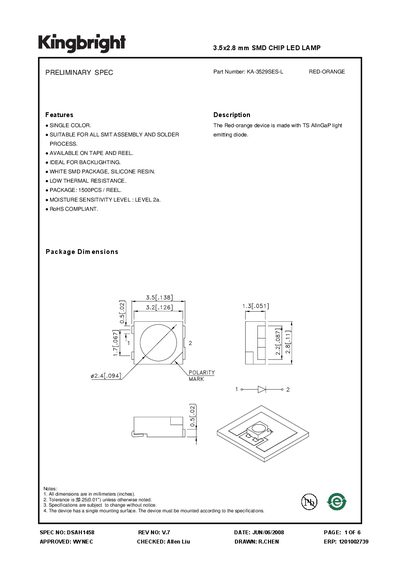

The PDF file is a preliminary spec for the KA-3529SES-L RED-ORANGE. This product is made with TS AlInGaP light emitting diode and is suitable for all SMT assembly and soldering processes.
The KA-3529SES-L is a single‑color red‑orange LED built on a silicone resin package, suitable for SMT assembly and backlighting. It offers low thermal resistance, RoHS compliance, and is available on tape and reel. Electrical ratings include a forward current of 150 mA, peak forward current of 350 mA, and a forward voltage of about 3.6 V at 150 mA.
Handling precautions stress gentle side‑surface handling, avoiding contact with the silicone lens, and using a pliable nozzle tip to prevent scratching. The recommended reflow profile is 245 °C ± 5 °C with a maximum of 260 °C, and no more than two reflow cycles. Packaging is 1,500 pieces per reel with clear labeling for inventory control.
| Power Dissipation | 615 mW |
|---|---|
| Junction Temperature | 110 °C |
| Operating Temperature | -40 to +85 °C |
| DC Forward Current | 150 mA |
| Peak Forward Current | 350 mA |
| Forward Voltage | 3.6 V |
| Reverse Current | 10 µA |
| Peak Wavelength | 626 nm |
The LED has a moisture sensitivity level of Level 2a.
Yes, the device is RoHS compliant.
