The document describes the features and characteristics of the Super Bright Red LED, including dimensions, power consumption, and viewing angle.

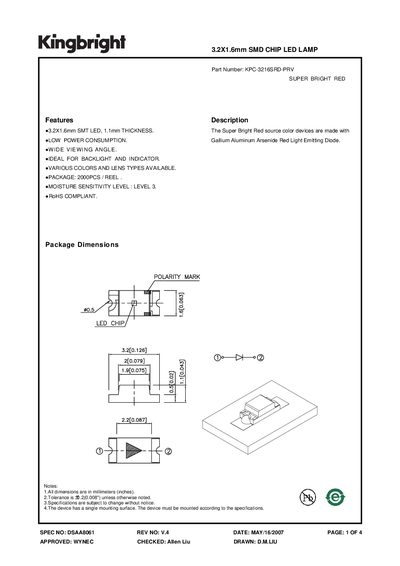

The Kingbright KPC-3216SRD-PRV is a 3.2 × 1.6 mm surface‑mount red LED. It features a 1.1 mm thickness, wide viewing angle, low power consumption, and RoHS compliance. Ideal for backlight and indicator applications, it is supplied in reels of 2000 pieces.
Electrical specifications include a peak wavelength of 660 nm, forward voltage of 1.85 V at 20 mA, reverse current of 10 µA at 5 V, power dissipation of 75 mW, and an operating temperature range of –40 °C to +85 °C. The datasheet also provides a recommended reflow soldering profile with a peak temperature of 245 °C (±5 °C) and a maximum of 260 °C.
| Peak Wavelength | 660 nm |
|---|---|
| Forward Voltage (20 mA) | 1.85 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 75 mW |
| DC Forward Current | 30 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Capacitance | 45 pF |
The recommended reflow temperature is 245 °C ±5 °C, with a maximum soldering temperature of 260 °C.
The forward voltage is 1.85 V at a test current of 20 mA.
The LED can dissipate up to 75 mW.
