WP813ID is a high efficiency red LED, made with GaAsP/GaP material, with a 10mm large lamp, IC compatible, reliable and rugged, long life, RoHS compliant.

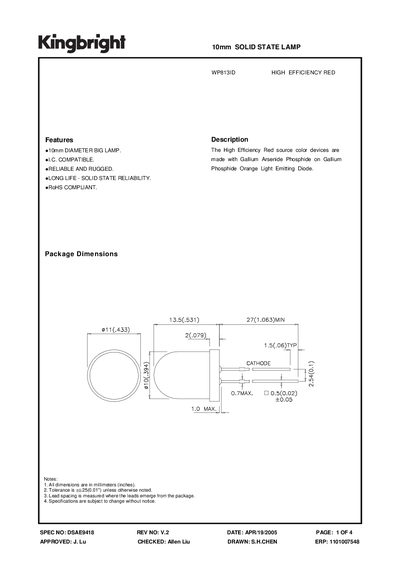

The WP813ID is a 10 mm solid‑state lamp offering high‑efficiency red emission. It features a compact package, RoHS compliance, and reliable long‑life operation. The document provides package dimensions, part number, and handling notes.
Key electrical and optical characteristics are listed, including peak wavelength, forward voltage, reverse current, and power dissipation. Packing and label specifications, as well as sorting tolerances for wavelength, intensity and voltage, are also included.
| Peak Wavelength | 627 nm |
|---|---|
| Dominant Wavelength | 625 nm |
| Spectral Line Half‑width | 45 nm |
| Capacitance | 15 pF |
| Forward Voltage | 2.0 V – 2.5 V (IF=20 mA) |
| Reverse Current | 10 µA (Vr=5 V) |
| Power Dissipation | 105 mW |
| Operating Temperature | -40 °C to +85 °C |
The peak wavelength is 627 nm.
It operates at a forward voltage of 2.0 V to 2.5 V at 20 mA.
The device can tolerate up to 5 V reverse voltage and has a reverse current of 10 µA.
It can be stored and operated from –40 °C to +85 °C.
