This document is about the specifications of L-934LYD YELLOW product. It mainly introduces the features and characteristics of the product, including electrical/optical characteristics, absolute maximum ratings, selection guide, etc.

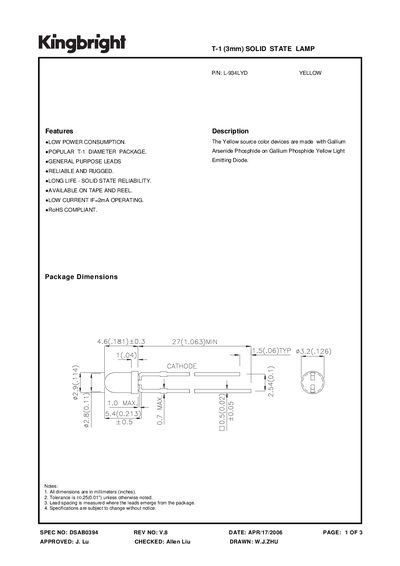

The Kingbright L-934LYD is a 3 mm solid‑state lamp (LED) offered in a yellow color. It features low power consumption, reliable rugged construction, and is available on tape and reel. The device uses a Gallium Arsenide Phosphide on Gallium Phosphide structure and complies with RoHS regulations.
Key electrical and optical characteristics include a 590 nm peak wavelength, 2.5 V forward voltage at 20 mA, 10 µA reverse current at 5 V, and a maximum power dissipation of 105 mW. The lamp operates from –40 °C to +85 °C and has a typical forward current rating of 30 mA. Package dimensions are 4.6 mm × 1.81 mm × 0.40 mm.
| Peak Wavelength | 590 Å |
|---|---|
| Reverse Current (Vr=5 V) | 10 µA |
| Power Dissipation | 105 mW |
| DC Forward Current | 30 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Capacitance | 20 pF |
Yes, the device is RoHS compliant.
The maximum reverse voltage is 5 V.
It can operate from –40 °C up to +85 °C.
