The document describes the features and characteristics of a super bright red light emitting diode product, including low power consumption, high reliability, and long life.

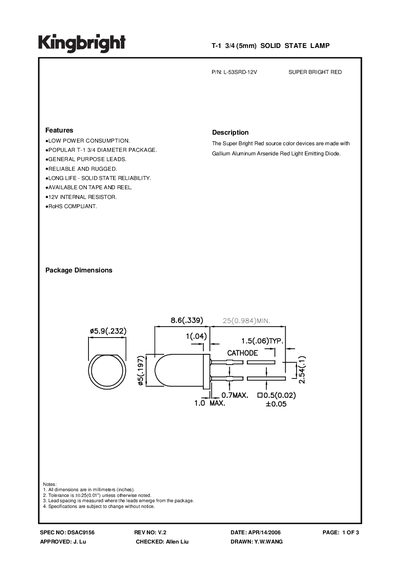

The L-53SRD-12V is a 5 mm T‑1 3/4 solid‑state lamp offered in a super bright red color. It features low power consumption, long life, and is available on tape and reel with an internal 12 V resistor. The device complies with RoHS standards.
The datasheet provides detailed electrical and optical characteristics, including forward voltage of 14 V, forward current range of 8.5‑11.5 mA, peak wavelength of 660 nm, and operating temperature from –40 °C to +70 °C. Package dimensions, selection guide data, and spatial distribution graphs are also included.
| Forward Voltage | 14 V |
|---|---|
| Forward Current | 8.5 – 11.5 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 120 mW |
| Peak Wavelength | 660 nm |
| Spectral Line Half‑width | 20 nm |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
The forward voltage is 14 V.
The peak wavelength is 660 nm.
Yes, it is RoHS compliant.
It operates from –40 °C to +70 °C.
