KPC-3216YD YELLOW is a 3.2X1.6mm SMD CHIP LED LAMP with low power consumption and wide viewing angle, ideal for backlight and indicator.

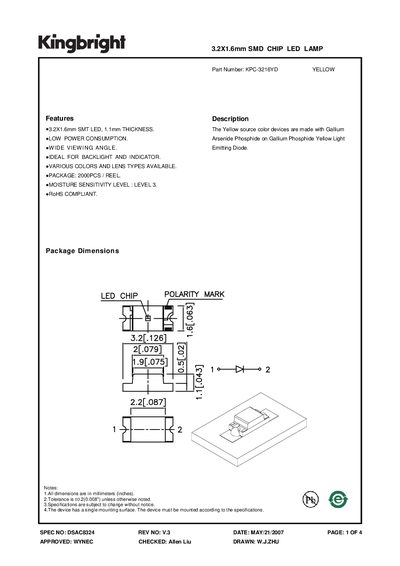

The Kingbright KPC-3216YD is a 3.2 × 1.6 mm surface‑mount LED lamp in yellow color, featuring low power consumption, wide viewing angle, and a package of 2000 pieces per reel. The datasheet provides detailed electrical, optical, and mechanical characteristics, as well as recommended reflow soldering profiles for lead‑free SMT processes.
Key data include peak wavelength, forward voltage, capacitance, power dissipation limits, and temperature ratings. The document also contains a derating curve, luminous intensity distribution, and mechanical drawing dimensions for proper mounting.
| Peak Wavelength | 590 nm |
|---|---|
| Capacitance | 20 pF |
| Power Dissipation | 75 mW |
| DC Forward Current | 30 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Quantity per Reel | 2000 pcs |
The recommended reflow temperature is 245 °C ± 5 °C, with a maximum of 260 °C.
Each reel contains 2000 pieces of the KPC-3216YD LED.
The device can withstand up to 5 V reverse voltage.
