This document is about the parameters of L-934PWC WHITE, including size, power consumption, and color.
The L-934PWC WHITE is a 3 mm T‑1 package solid‑state lamp based on InGaN technology. It offers low power consumption, long life, and a rugged design suitable for general‑purpose lighting applications.

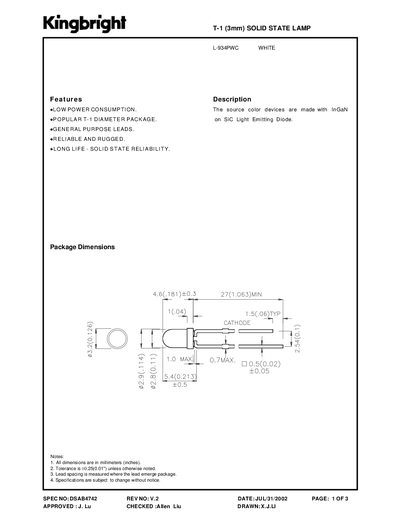

The datasheet lists the package dimensions, forward voltage, reverse current, power dissipation, and temperature limits, and includes forward‑current and luminous‑intensity curves to aid designers in selecting appropriate drive conditions.
| Typical Forward Voltage (20 mA) | 3.65 V |
|---|---|
| Maximum Reverse Current (5 V) | 10 µA |
| Power Dissipation | 102 mW |
| Maximum DC Forward Current | 30 mA |
| Pulse Forward Current (t) | 160 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Lead Solder Temperature | 260 °C for 5 s |
| Capacitance (1 MHz) | 65 pF |
The typical forward voltage is 3.65 V (maximum 4.2 V) at a forward current of 20 mA.
The reverse current is limited to 10 µA when the reverse voltage is 5 V.
The lamp can operate from –40 °C up to +85 °C.
The maximum continuous forward current is 30 mA.
