The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode. The lamp has a T-1 3/4 (5mm) package with an integrated blinking IC, operating voltage from 3.5V to 14V and blinking frequency from 3.0Hz to 1.5Hz.

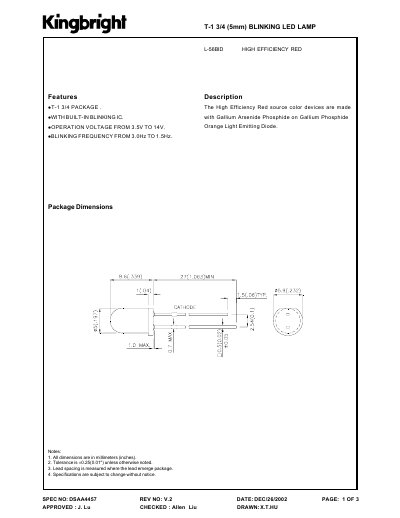

This datasheet describes the high‑efficiency red T‑1 3/4 (5 mm) blinking LED lamp identified as L‑56BID. It includes package dimensions, built‑in blinking IC features, and key electrical and optical parameters.
Key data such as operating voltage range, blinking frequency, and maximum ratings are listed, allowing designers to integrate the component into circuits with appropriate power and timing requirements. This manual is written in Chinese.
| Operating Voltage | 3.5 V to 14 V |
|---|---|
| Blinking Frequency | 3.0 Hz to 1.5 Hz |
The LED operates from 3.5 V to 14 V.
It blinks between 3.0 Hz and 1.5 Hz.
