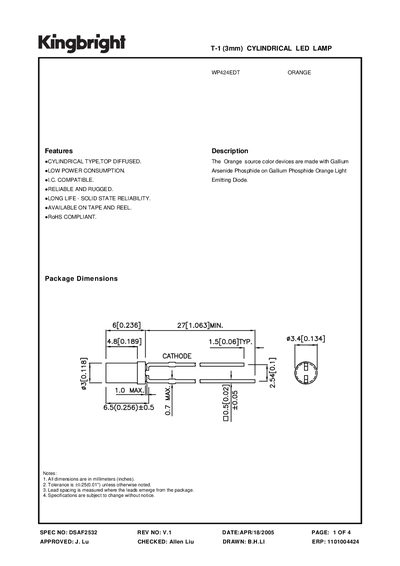

This is the specification sheet for WP424EDT ORANGE (GaAsP/GaP) ORANGE DIFFUSED
The WP424EDT is a cylindrical, top‑diffused orange LED lamp from Kingbright. It features low power consumption, long life solid‑state reliability, and RoHS compliance. The device is available in tape and reel formats.
The datasheet lists detailed electrical and optical characteristics such as peak wavelength, forward voltage, and reverse current, as well as absolute maximum ratings, derating curves, and packaging details for bulk handling.
| Peak Wavelength | 627 nm |
|---|---|
| Dominant Wavelength | 625 nm |
| Spectral Line Half‑width | 45 nm |
| Capacitance | 15 pF |
| Forward Voltage (20 mA) | 2.0‑2.5 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| DC Forward Current | 30 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Packaging – per bag | 1,000 pcs |
| Packaging – per box | 48 K pcs per 9# box |
The forward voltage is between 2.0 V and 2.5 V at a test current of 20 mA.
The device can tolerate a reverse voltage of up to 5 V.
It operates from –40 °C up to +85 °C.
Each bag contains 1,000 pieces.
