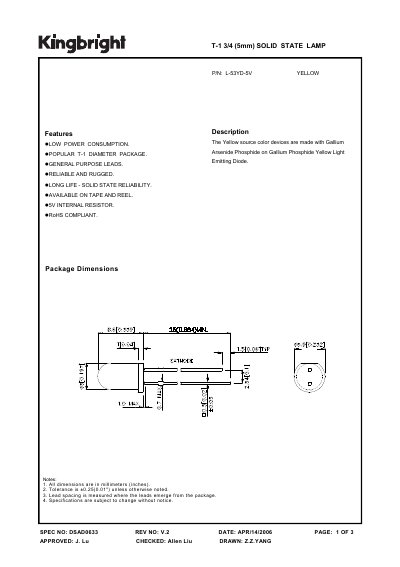

L-53YD-5V YELLOW is a 5V yellow solid state lamp
The L-53YD-5V is a yellow light‑emitting diode packaged in a T‑1 3/4 (5 mm) solid‑state lamp format. It uses a GaAsP/GaP structure with a built‑in 5 V internal resistor and complies with RoHS standards.
Key specifications include a peak wavelength of 590 nm, forward current of 13‑17.5 mA, reverse current of 10 µA, power dissipation of 85 mW, and an operating temperature range of –40 °C to +70 °C.
| Peak Wavelength | 590 nm |
|---|---|
| Dominant Wavelength | 588 nm |
| Spectral Half‑Width | 35 nm |
| Forward Current | 13‑17.5 mA |
| Reverse Current | 10 µA |
| Power Dissipation | 85 mW |
| Operating Temperature | -40 °C to +70 °C |
| Internal Resistor | 5 V |
| RoHS Compliance | Yes |
The peak wavelength is 590 nm.
Yes, it is RoHS compliant.
It includes a 5 V internal resistor.
The device operates from –40 °C to +70 °C.
