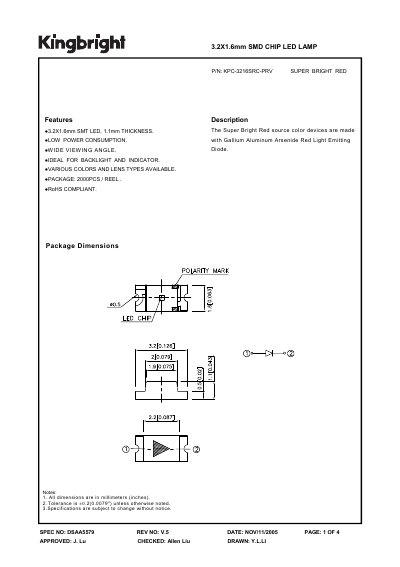

This document is the specification of KPC-3216SRC-PRV.
The KPC-3216SRC-PRV is a super‑bright red GaAlAs surface‑mount LED measuring 3.2 mm × 1.6 mm with a 1.1 mm thickness. It offers low power consumption, a wide 120° viewing angle, and is suitable for backlight and indicator applications. The device is RoHS compliant and shipped in reels of 2000 pieces.
Key electrical and optical characteristics include a peak wavelength of 660 nm, dominant wavelength of 640 nm, spectral half‑width of 20 nm, forward voltage of 1.85‑2.5 V at 20 mA, reverse voltage of 5 V, power dissipation of 100 mW, and an operating temperature range of –40 °C to +85 °C. Recommended soldering patterns and tape dimensions are provided for assembly.
| Package size | 3.2 mm × 1.6 mm, 1.1 mm thickness |
|---|---|
| Peak wavelength | 660 nm |
| Dominant wavelength | 640 nm |
| Spectral half‑width | 20 nm |
| Forward voltage (20 mA) | 1.85‑2.5 V |
| Reverse voltage | 5 V |
| Power dissipation | 100 mW |
| Operating temperature range | -40 °C to +85 °C |
| Package quantity | 2000 pcs / reel |
| RoHS compliance | Yes |
Each reel contains 2000 pieces.
Yes, it meets RoHS requirements.
The forward voltage is specified as 1.85 V to 2.5 V.
