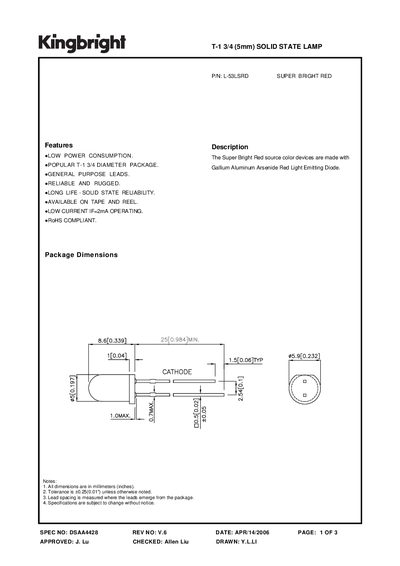

The document describes a Super Bright Red T-1 3/4 (5mm) solid state lamp, which features low power consumption, reliability, and long life.
The Kingbright L-53LSRD Super Bright Red is a 5 mm T‑1 3/4 solid‑state lamp featuring low power consumption, high reliability, and RoHS compliance. It is available on tape and reel and designed for general‑purpose leads.
The datasheet provides electrical and optical characteristics such as a 660 nm peak wavelength, 1.85 V forward voltage at 20 mA, and a maximum power dissipation of 100 mW, along with mechanical dimensions and temperature ratings.
| Peak Wavelength | 660 nm |
|---|---|
| Forward Voltage (20 mA) | 1.85 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 100 mW |
| DC Forward Current | 30 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Capacitance | 45 pF |
The forward voltage is 1.85 V at 20 mA.
The peak wavelength is 660 nm.
The maximum power dissipation is 100 mW.
It operates from –40 °C to +85 °C.
