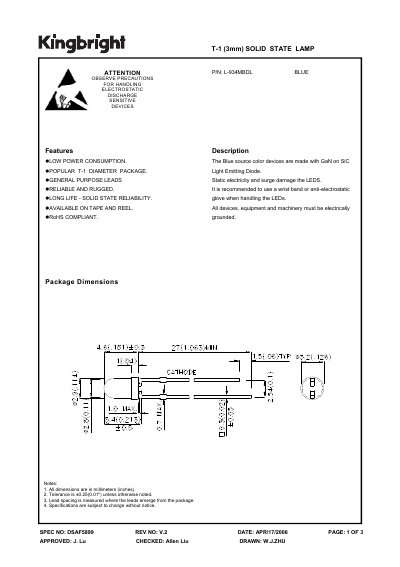

This document is a specification sheet for L-934MBDL BLUE (GaN) BLUE DIFFUSED product, including product dimensions, electrical/optical characteristics, absolute maximum ratings and other information.
The L-934MBDL is a blue LED chip built with GaN on SiC technology and packaged in a T‑1 (3 mm) solid‑state lamp format. It is intended for general‑purpose lighting and industrial applications and is RoHS compliant.
Key specifications include a peak wavelength of 430 nm, dominant wavelength of 466 nm, forward voltage of 3.8‑4.5 V at 20 mA, power dissipation of 105 mW, and an operating temperature range of –40 °C to +85 °C. Handling precautions advise the use of anti‑static wrist straps or gloves and proper grounding of equipment.
| Peak Wavelength | 430 nm |
|---|---|
| Dominant Wavelength | 466 nm |
| Forward Voltage | 3.8‑4.5 V (20 mA) |
| Power Dissipation | 105 mW |
| Capacitance | 100 pF |
| Reverse Current | 10 µA |
| Operating Temperature | -40 °C to +85 °C |
Use a wrist band or anti‑electrostatic glove when handling the LEDs and ensure all equipment is electrically grounded.
The DC forward current rating is 30 mA, with a peak forward current of 150 mA.
