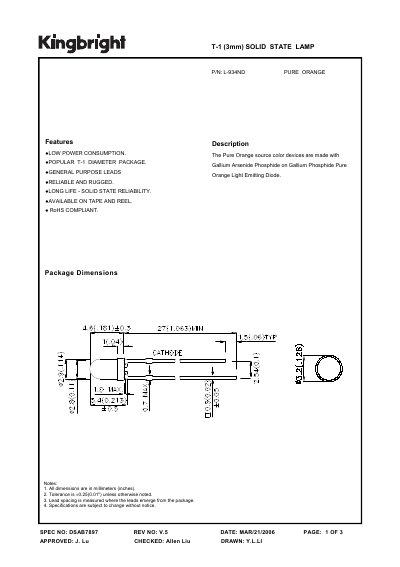

This document is a specification sheet for L-934ND PURE ORANGE product
The L-934ND is a 3 mm T‑1 package solid‑state lamp emitting pure orange light, built with GaAsP/GaP material. It is designed for low power consumption and long life, suitable for general‑purpose applications.
Key characteristics include a peak wavelength of 607 nm, forward voltage of 2.05‑2.5 V at 20 mA, and a maximum continuous forward current of 25 mA. The device is RoHS compliant, available on tape and reel, and operates from –40 °C to +85 °C.
| Peak Wavelength | 607 nm |
|---|---|
| Spectral Line Half‑width | 35 nm |
| Capacitance | 15 pF |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| Continuous Forward Current | 25 mA |
| Reverse Voltage | 5 V |
| Operating Temperature | -40 °C to +85 °C |
The peak wavelength is 607 nm measured at 20 mA.
The device can handle a continuous forward current of 25 mA.
It operates from –40 °C up to +85 °C.
