L-934SRC-B is a super bright red LED lamp made of high power, high brightness and high reliability GaAlAs red light emitting diodes.

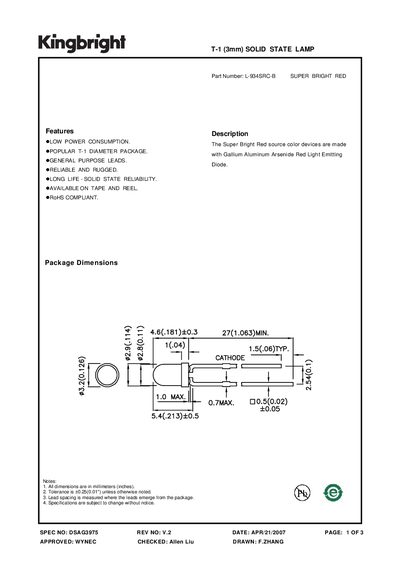

The L-934SRC-B is a 3 mm solid‑state lamp featuring low power consumption, a popular T‑1 package, and long‑life reliability. It is available on tape and reel and complies with RoHS.
The datasheet provides detailed optical data (peak wavelength 660 nm, dominant wavelength 640 nm), electrical specs (forward voltage 1.85 V at 20 mA, reverse current 10 µA), and absolute maximum ratings such as 75 mW power dissipation and an operating temperature range of –40 °C to +85 °C.
| Peak Wavelength | 660 nm |
|---|---|
| Dominant Wavelength | 640 nm |
| Spectral Line Half‑width | 20 nm |
| Capacitance | 45 pF |
| Forward Voltage (20 mA) | 1.85 V |
| Reverse Current | 10 µA |
| Power Dissipation | 75 mW |
| DC Forward Current | 30 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
The forward voltage is 1.85 V.
The peak wavelength is 660 nm.
The device can dissipate up to 75 mW.
It operates from –40 °C to +85 °C.
