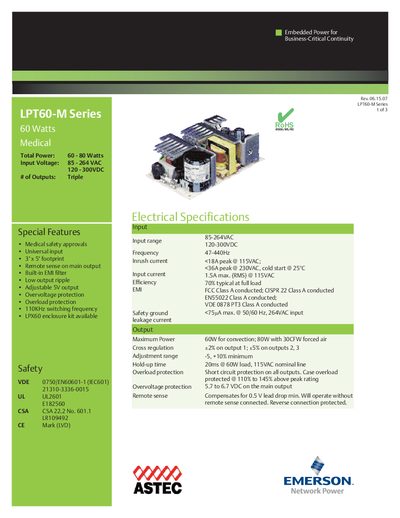

The LPT60-M series is a 60-watt medical-grade power supply with medical safety approvals, universal input, a 3-inch x 5-inch footprint, remote sensing on the main output, a built-in EMI filter, low output ripple, an adjustable 5V output, overvoltage protection, overload protection, a 110KHz switching frequency, and an LPX60 enclosure kit.
The LPT60-M Series is a compact 3" × 5" medical‑grade power supply offering triple outputs with adjustable 5 V output, built‑in EMI filtering, and over‑voltage/over‑load protection. It operates from 85‑264 VAC or 120‑300 VDC input and features remote sense on the main output.
Key specifications include 110 kHz switching frequency, 70% typical efficiency at full load, 20 ms hold‑up time at 60 W, and an MTBF exceeding 550,000 hours. The unit meets VDE 0750/EN60601‑1, UL2601, CSA 22.2, and CE (LVD) safety standards and is rated for operation from 0 °C to 50 °C ambient temperature.
| Total Power | 60 - 80 Watts |
|---|---|
| Input Voltage (AC) | 85 - 264 VAC |
| Input Voltage (DC) | 120 - 300 VDC |
| Number of Outputs | Triple |
| Switching Frequency | 110 kHz |
| Efficiency | 70% typical at full load |
| Hold‑up Time | 20 ms @ 60 W load |
| MTBF | >550,000 hours |
| Operating Temperature | 0 °C to 50 °C |
| Weight | 0.75 lbs |
The unit accepts 85‑264 VAC or 120‑300 VDC input.
The demonstrated MTBF is greater than 550,000 hours at full load and 25 °C ambient.
The main output voltage is 5.7 to 6.7 VDC.
