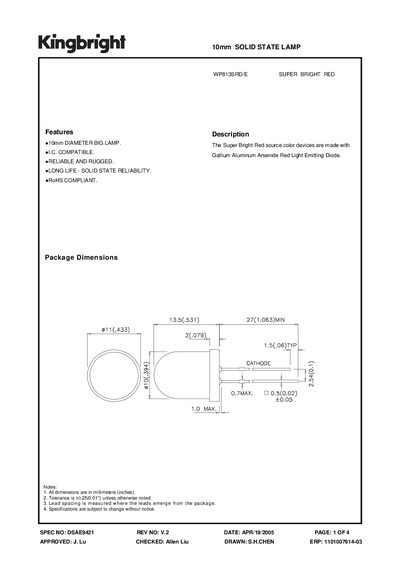

This document is a datasheet for WP813SRD/E super bright red LED, including package dimensions, optical characteristics, electrical characteristics, etc.
The WP813SRD/E is a 10 mm diameter solid‑state lamp that emits a super bright red light using a Gallium Aluminum Arsenide LED. It is RoHS compliant and designed for reliable, long‑life operation.
The datasheet provides electrical and optical characteristics such as peak wavelength, forward voltage, reverse current, and power dissipation, as well as absolute maximum ratings, relative radiant intensity curves, and packaging details for bulk handling.
| Peak Wavelength | 660 nm |
|---|---|
| Forward Voltage (IF=20 mA) | 1.85 V |
| Reverse Current (Vr=5 V) | 10 µA |
| Power Dissipation | 100 mW |
| DC Forward Current | 30 mA |
| Operating Temperature | -40 °C to +85 °C |
| Capacitance | 45 pF |
| Spectral Line Half‑width | 20 nm |
The forward voltage is 1.85 V at a test current of 20 mA.
The device can dissipate up to 100 mW.
Yes, the lamp is RoHS compliant.
Each bag contains 200 pieces.
