The document introduces a green light source device made with Gallium Phosphide Green Light Emitting Diode. It features high luminous intensity, low power consumption, wide viewing angle, excellent on/off contrast, and easy mounting on P.C. board or sockets.

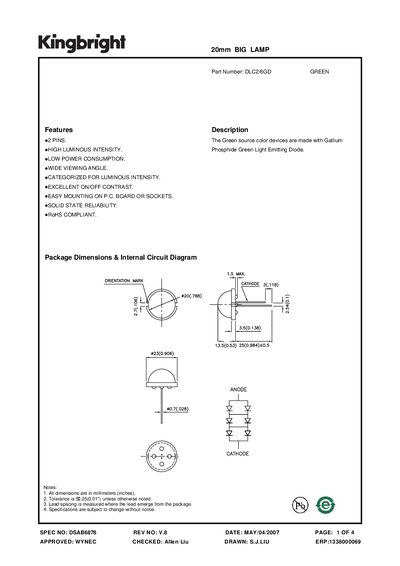

The Kingbright DLC2/6GD is a 20 mm BIG LAMP green LED (GaP) designed for high luminous intensity, low power consumption and wide viewing angle. It features a 2‑pin package, solid‑state reliability and RoHS compliance.
The datasheet lists electrical and optical characteristics such as a peak wavelength of 565 nm, forward voltage of 6.0 V at 10 mA, and a maximum forward current of 50 mA. Mechanical data, packaging details (41 pcs per tube, 1435 pcs per box) and absolute maximum ratings are also provided.
| Peak Wavelength | 565 nm |
|---|---|
| Forward Voltage (10 mA) | 6.0 V |
| Reverse Current (15 V) | 20 µA |
| Power Dissipation | 375 mW |
| Operating Temperature Range | -40 °C to +85 °C |
| Capacitance | 15 pF |
The forward voltage is 6.0 V at a test current of 10 mA.
It operates from –40 °C up to +85 °C.
Each tube contains 41 pieces.
Yes, the device is RoHS compliant.
