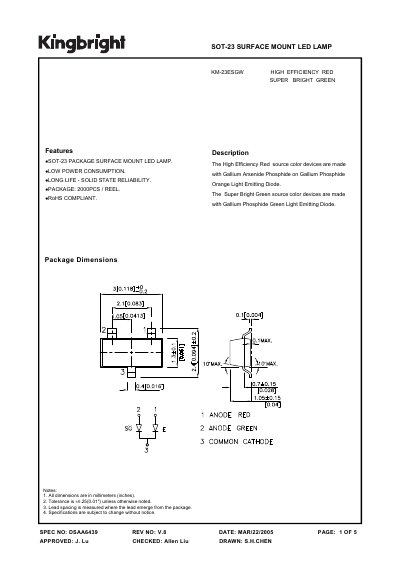

KM-23ESGW is a super bright green light emitting diode, with SOT-23 package, low power consumption and solid state reliability.
This document describes the DSAA6439 SOT‑23 surface‑mount LED, offering high‑efficiency red and super‑bright green light output. Key features include low power consumption, long life, solid‑state reliability, RoHS compliance, and packaging of 2000 pcs per reel.
Detailed electrical and optical characteristics are listed, such as peak wavelength, forward voltage, power dissipation, and viewing angle. The datasheet also provides recommended soldering patterns, tape specifications, and sorting tolerances for wavelength, luminous intensity, and forward voltage. This manual is written in Chinese.
Yes, the DSAA6439 LED is RoHS compliant.
The recommended soldering pattern dimensions are given in millimeters on page 5 of the datasheet.
