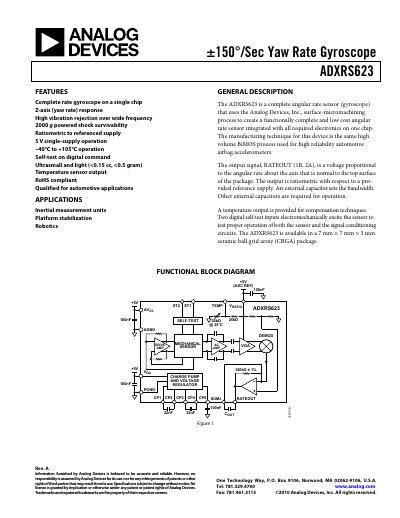

The ADXRS623 is a complete integrated Z-axis (yaw rate) response gyroscope that uses the Analog Devices, Inc., surface-micromachining process to create a functionally complete and low cost angular rate sensor integrated with all required electronics on one chip.
The ADXRS623 is a complete angular‑rate sensor (gyroscope) fabricated with Analog Devices' surface‑micromachining process. It integrates the sensing element and signal‑conditioning electronics in a 7 mm × 7 mm × 3 mm CBGA package and operates from a single 5 V supply.
Key features include high vibration rejection, 2000 g shock survivability, ratiometric output, an on‑chip temperature sensor for compensation, and built‑in digital self‑test. The device is qualified for automotive applications and meets RoHS requirements.
| Supply Voltage (VDD, AVCC) | 4.75 V – 5.25 V |
|---|---|
| Supply Current | 3.5 mA – 5.0 mA |
| Null Voltage (TEMP pin at 25 °C) | 2.5 V |
It operates from a single 5 V supply, with an acceptable range of 4.75 V to 5.25 V.
