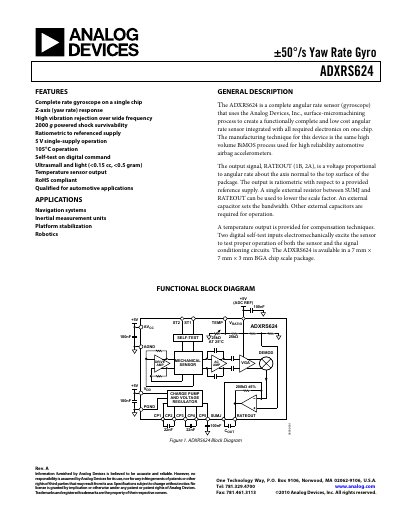

The ADXRS624 is a complete angular rate sensor (gyroscope) that uses the Analog Devices, Inc., surface-micromachining process to create a functionally complete and low cost angular rate sensor integrated with all required electronics on one chip.
The ADXRS624 is a complete angular‑rate sensor (gyroscope) that integrates the sensing element and signal‑conditioning electronics on a single chip. It offers high vibration rejection, 2000 g shock survivability, and ratiometric operation from a 5 V single‑supply, making it suitable for navigation, inertial measurement units, platform stabilization, and robotics.
The document details the functional block diagram, pin configuration, absolute maximum ratings, typical performance characteristics, and how to set bandwidth and calibrate the temperature output. It also includes ordering information, automotive‑grade options, and references to related application notes.
| Operating Voltage (VS) | 4.75 V – 5.25 V |
|---|---|
| Supply Current | 3.5 mA – 5.0 mA |
| Bandwidth (COUT = 0.01 µF) | 80 Hz |
| Temperature Range | −40 °C to +105 °C |
| Shock Survivability | 2000 g powered shock |
| Package | 32‑Lead Ceramic Ball Grid Array (CBGA) |
The device operates from 4.75 V to 5.25 V, with a nominal supply of 5 V.
The gyroscope can survive powered shocks up to 2000 g.
