ADIS16488 is a 10-DoF inertial sensor that provides high-performance measurement data in harsh environments.

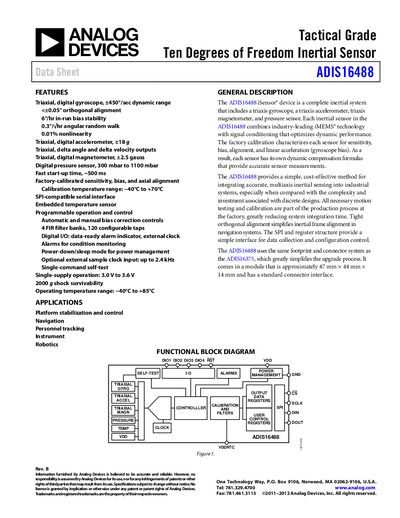

The ADIS16488 iSensor® device is a ten‑degree‑of‑freedom inertial sensor that integrates a triaxial gyroscope, accelerometer, magnetometer, and pressure sensor in a compact 47 mm × 44 mm × 14 mm module. The handbook details its features, functional block diagram, and typical applications such as platform stabilization, navigation, robotics, and personnel tracking.
The document includes detailed specifications, absolute maximum ratings, pin‑out diagrams, timing diagrams, and power‑management information. It also provides guidance on configuration, self‑test, and calibration procedures, making it a comprehensive reference for engineers integrating the ADIS16488 into industrial systems.
| Gyroscope Dynamic Range | +450°/sec |
|---|---|
| Accelerometer Dynamic Range | +18 g |
| Magnetometer Dynamic Range | 42.5 gauss |
| Barometer Pressure Range | 300 to 1100 mbar |
| Supply Voltage Range | 3.0 V to 3.6 V |
The device operates from –40 °C to +85 °C.
The power‑on start‑up time is approximately 500 ms.
The sensor can survive shocks up to 2000 g.
It uses an SPI‑compatible serial interface.
