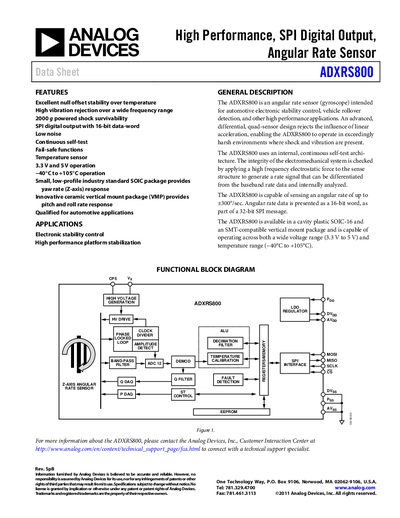

This data sheet introduces the features and characteristics of ADXRS800 high-performance, SPI digital output, angular rate sensor. The sensor is suitable for automotive electronic stability control, vehicle rollover detection and other high-performance platform stabilization applications.
The ADXRS800 is a high‑performance angular rate sensor designed for automotive electronic stability control, vehicle rollover detection, and other demanding applications. It offers excellent null‑offset stability, high vibration rejection, and 2000 g powered shock survivability, with a fail‑safe architecture and continuous self‑test.
The device operates from 3.3 V to 5 V and across a temperature range of –40 °C to +105 °C. It delivers angular rate data as a 16‑bit word within a 32‑bit SPI message, supporting up to ±300°/sec. The sensor is available in a standard SOIC‑16 package for yaw (Z‑axis) and a vertical‑mount package for pitch and roll rates, qualified for automotive use.
| SPI digital output resolution | 16-bit data word |
|---|---|
| Supply voltage | 3.3 V to 5 V |
| Operating temperature range | -40°C to +105°C |
| Maximum angular rate | +300°/sec |
| Shock survivability | 2000 g powered |
The sensor operates from 3.3 V to 5 V.
It can sense angular rates up to ±300°/sec.
It works from –40 °C to +105 °C.
