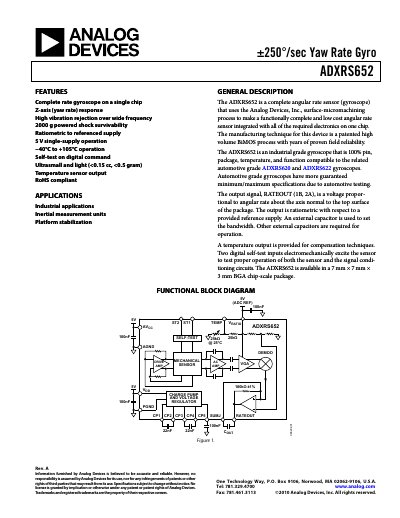

This document describes the Yaw Rate Gyro ADXRS652 Rev. A, which is a complete rate gyroscope on a single chip. It features high vibration rejection, 2000 g powered shock survivability, 5 V single-supply operation, etc.
The ADXRS652 is a complete angular‑rate sensor (gyroscope) fabricated with Analog Devices' surface‑micromachining process. It integrates the sensing element and signal‑conditioning electronics in a 7 mm × 7 mm × 3 mm BGA package and is compatible with automotive‑grade ADXRS620/622 parts.
The device operates from a 5 V supply, provides a ratiometric voltage output proportional to yaw rate, and includes a temperature‑compensated output, digital self‑test pins, and a wide operating temperature range of –40 °C to +105 °C. Its specifications cover high vibration rejection, low noise density, and 2000 g powered shock survivability, making it suitable for industrial, IMU and platform‑stabilization applications.
| Sensitivity | 7.04 mV/°/sec |
|---|---|
| Measurement Range | ±250°/sec |
| Operating Temperature Range | −40 °C to +105 °C |
| Supply Voltage | 5 V (4.75‑5.25 V) |
| Current Consumption | 3.5‑4.5 mA |
| Noise Density | 0.06 °/sec/√Hz |
| Bandwidth | 80 Hz |
| Shock Survivability | 2000 g (powered) |
| Nonlinearity | 0.1 % of FS |
The device operates from –40 °C to +105 °C.
It requires a 5 V supply (acceptable range 4.75 V to 5.25 V).
The sensor can survive up to 2000 g powered shock.
Both outputs are ratiometric to the V_Ratio supply voltage.
