ADIS16375 is a low profile, low noise six degrees of freedom inertial sensor. It has three axis digital gyroscope, three axis digital accelerometer, high sampling rate, autonomous operation and data collection.
The ADIS16375 is a low‑profile, low‑noise six‑degree‑of‑freedom inertial sensor that integrates a triaxis gyroscope and triaxis accelerometer. It is intended for precision instrumentation, platform stabilization, industrial vehicle navigation, downhole instrumentation, and robotics.

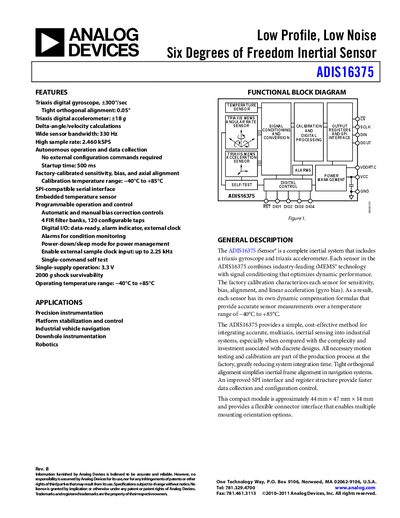

The handbook provides full specifications, pin‑out diagrams, timing details, absolute maximum ratings, and typical performance characteristics, along with ordering information and revision history for designers and system integrators.
| Gyroscope Dynamic Range | +300 °/sec |
|---|---|
| Accelerometer Dynamic Range | +18 g |
| Power Supply Voltage | 3.0 – 3.6 V |
| Power Supply Current (Normal mode) | 173 mA |
| Power‑On Startup Time | 500 ms |
| Operating Temperature Range | –40°C to +85°C |
| Shock Survivability | 2000 g |
| Conversion Rate | 2.46 kSPS |
The sensor operates from –40°C to +85°C.
The device requires a supply voltage between 3.0 V and 3.6 V.
The ADIS16375 can survive shocks up to 2000 g.
The sensor can sample at up to 2.46 kSPS.
