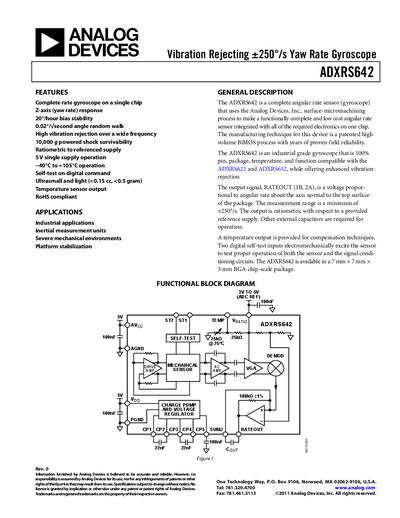

The ADXRS642 is a complete angular rate sensor (gyroscope) that uses the Analog Devices, Inc., surface-micromachining process to make a functionally complete and low cost angular rate sensor integrated with all of the required electronic components, including analog filters, digital outputs, temperature sensor, and self-test function.
The ADXRS642 is a complete angular‑rate gyroscope from Analog Devices, designed for industrial applications such as inertial measurement units and platform stabilization. It offers high vibration rejection, a wide temperature range, and a built‑in temperature sensor.
The document provides detailed specifications, absolute maximum ratings, pin configuration, theory of operation, bandwidth setting, and typical performance characteristics, along with self‑test procedures and supply requirements.
| Initial and Over Temperature Sensitivity | 7.0 mV/°/sec |
|---|---|
| Temperature Drift | +2 % |
| Nonlinearity | 0.01 % of FS |
| Null Voltage Range | -40°C to +105°C 25 V |
| Linear Acceleration Effect | 0.03 °/sec per g |
| Vibration Rectification | 0.0002 °/sec at 25 g rms, 50 Hz‑5 kHz |
| Rate Noise Density | 0.02 µV/√Hz |
| Resolution Floor | 20 °/hr |
| Bandwidth (‑3 dB) | up to 2000 Hz |
| Operating Voltage | 4.75 V – 5.25 V |
It operates from a supply voltage of 4.75 V to 5.25 V, typically 5 V.
The temperature drift specification is +2 % over the operating temperature range.
The gyroscope can survive powered shock events up to 10,000 g.
