The ADIS16362 is a high-precision digital inertial sensor that provides three-axis digital gyroscopes and three-axis digital accelerometers. The sensor has tight orthogonal alignment, a wide sensor bandwidth, and automatic data collection. It is suitable for applications that require a fast start-up time and a short sleep recovery time.
The ADIS16362 iSensor is a six‑degree‑of‑freedom inertial sensor that combines a triaxis digital gyroscope and a triaxis digital accelerometer in a single module. It offers selectable gyroscope ranges (+75°/sec, +150°/sec, +300°/sec), a 330 Hz bandwidth, and factory‑calibrated sensitivity, bias, and alignment for accurate motion sensing in medical instrumentation, robotics, platform control, and navigation applications.

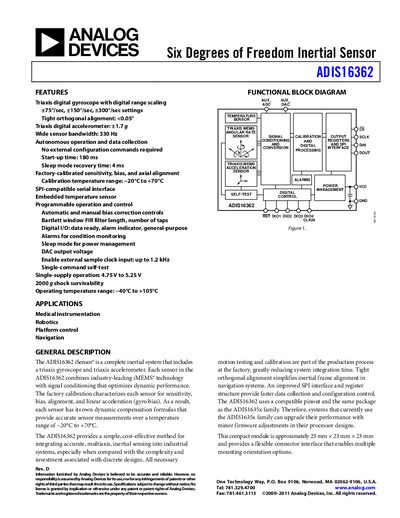

The datasheet lists detailed electrical specifications, absolute maximum ratings, pin‑out descriptions, timing diagrams, and typical performance characteristics. It also includes power‑supply requirements (4.75 V–5.25 V), operating temperature range (‑40 °C to +105 °C), shock survivability (2000 g), and SPI‑compatible serial interface details for system integration.
| Gyroscope dynamic range | +75, +150, +300 °/sec |
|---|---|
| Accelerometer dynamic range | ±17 g |
| Power supply voltage range | 4.75 V to 5.25 V |
| Operating temperature range | ‑40 °C to +105 °C |
| Shock survivability | 2000 g |
| 3 dB bandwidth | 330 Hz |
The device operates from –40 °C to +105 °C.
It runs on a single supply of 4.75 V to 5.25 V.
The gyroscope can be set to ±75 °/sec, ±150 °/sec, or ±300 °/sec.
It is rated for shock survivability up to 2000 g.
