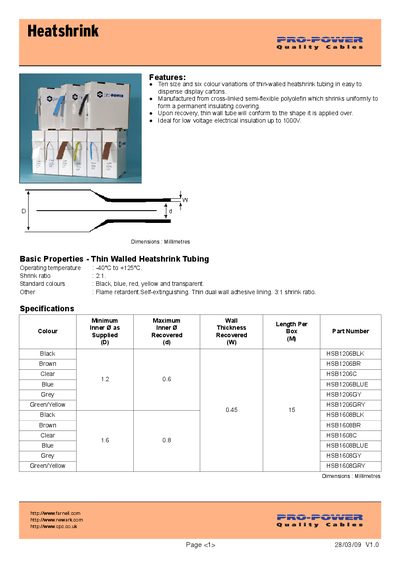

This document is the technical specification of Heatshrink
The Pro-Power heatshrink tubing is a thin‑walled, cross‑linked polyolefin product offered in ten sizes and six colour variations, supplied in easy‑to‑dispense display cartons. It shrinks uniformly to form a permanent insulating covering and conforms to the shape of the component it is applied over, making it ideal for low‑voltage electrical insulation up to 1000 V.
The datasheet lists detailed dimensions, wall thicknesses, shrink ratios, operating temperature range, and colour options for each part number. It also includes a disclaimer stating that the information is provided by the Premier Farnell Group and is for reference only.
| Operating temperature | -40 °C to +125 °C |
|---|---|
| Shrink ratio | 22:1 |
| Maximum voltage rating | 1000 V |
| Flame retardant | Self‑extinguishing |
The tubing operates from –40 °C up to +125 °C.
It has a shrink ratio of 22 : 1.
It is suitable for low‑voltage insulation up to 1000 V.
Yes, it is flame retardant and self‑extinguishing.
