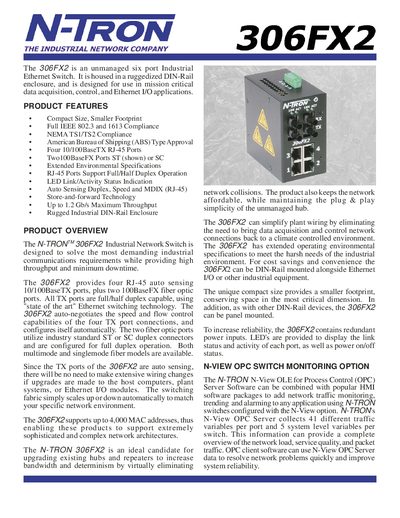

The 306FX2 is an unmanaged six port Industrial Ethernet Switch designed for use in mission critical data acquisition, control, and Ethernet I/O applications. It is housed in a ruggedized DIN-Rail enclosure and is designed to solve the most demanding industrial communications requirements while providing high throughput and minimum downtime.
The 306FX2 is an unmanaged six‑port Industrial Ethernet Switch housed in a ruggedized DIN‑Rail enclosure. It offers four auto‑sensing 10/100BaseTX RJ‑45 ports and two 100BaseFX fiber ports (ST or SC), supporting full‑duplex operation and up to 1.2 Gb/s maximum throughput. Designed for mission‑critical data acquisition and control, it provides plug‑and‑play simplicity, redundant power inputs, and LED status indicators.
The switch meets full IEEE 802.3 and 1613 compliance, NEMA TS1/TS2 standards, and includes extended environmental specifications such as operation from –20 °C to 70 °C, high MTBF, and shock/vibration resistance. Optional N‑View OPC Server software adds network traffic monitoring and diagnostics for enhanced reliability.
| Height | 3.46" (8.80 cm) |
|---|---|
| Width | 2.01" (5.10 cm) |
| Depth | 3.38" (8.59 cm) |
| Weight | 0.75 lbs (0.34 kg) |
| Input Voltage | 10‑30 VDC |
| Input Current | 250 mA @ 24 V |
| Operating Temperature | -20 °C to 70 °C |
| Maximum Throughput | 1.2 Gb/s |
| Shock Resistance | 200 g @ 10 ms |
| Vibration Resistance | 50 g, 5‑200 Hz, triaxial |
It provides four 10/100BaseTX RJ‑45 ports and two 100BaseFX fiber ports (ST or SC).
The switch supports up to 1.2 Gb/s maximum throughput.
It operates from –20 °C to 70 °C, can be stored from –40 °C to 85 °C, and tolerates 10 % to 95 % non‑condensing humidity.
The device is FCC Part 15 Class A, UL 1604 (US and Canada), Class I DIV 2 GROUPS A‑B‑C‑D‑T4A, and CE compliant with EN61000‑6‑2,4, EN55011, EN61000‑4‑2‑3‑4‑5‑6.
